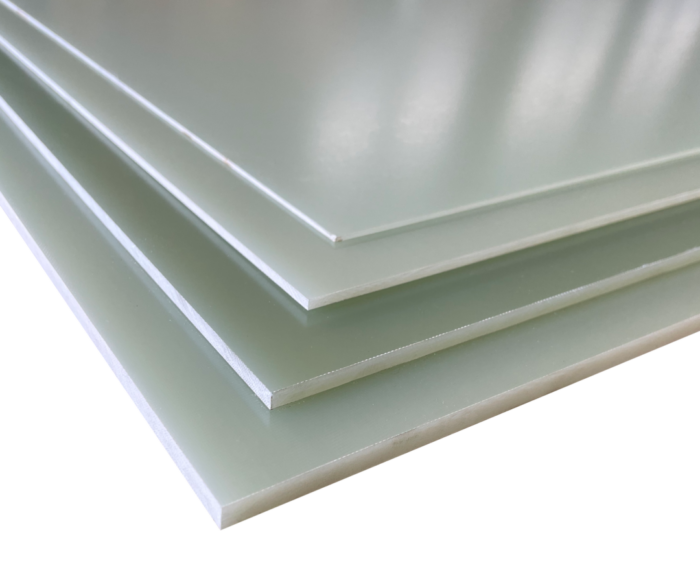

G10 / FR-4 Fiberglass Sheet – Natural Color – 1/16″ Thick – 12″ x 12″
$14.48
Description
A continuous woven glass fabric pressed with an epoxy resin. G10 / FR-4 Fiberglass has high mechanical strength, minimal water absorption and excellent electrical insulation properties. G10 / FR-4 can be used in applications over a wide range of temperatures and humidities. Machining services are also available for G10 / FR-4.
Typical applications for these sheets include marine and aquatic applications, printed circuit boards, knife handles, electrical insulators, non corrosive fixtures, and other components.
Contact us if you would like to request a custom layup schedule, cut size, surface finish, material type, or thickness. We are always happy to help.
Additional information
| Weight | 0.585 lbs |
|---|---|
| Dimensions | 12 × 12 × 0.0625 in |
| Part Length | 12" |
| Part Thickness | 1/16" |
| Part Width | 12" |
| Surface Finish | Gloss / Gloss |
| Surface Texture | Smooth |
| Units | in |
| Color | Natural |
Tolerances
Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.
Standard cuts are made on the tile saw and have a tolerance of +.125 inches and -0.0 inches. Tighter tolerances can be achieved with other cutting operations. Please contact us for requests about custom cuts and tighter tolerances.
Related products
-

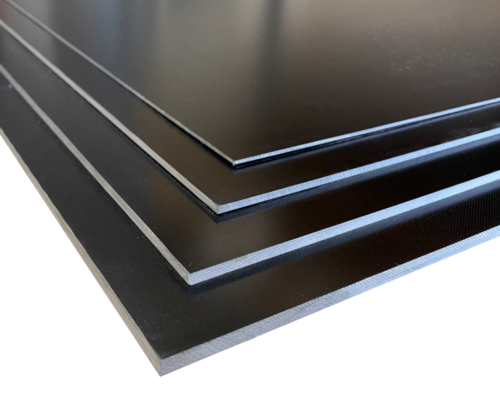

G10 / FR-4 Fiberglass Sheet – Black Color – 1/8″ Thick – 24″ x 24″
