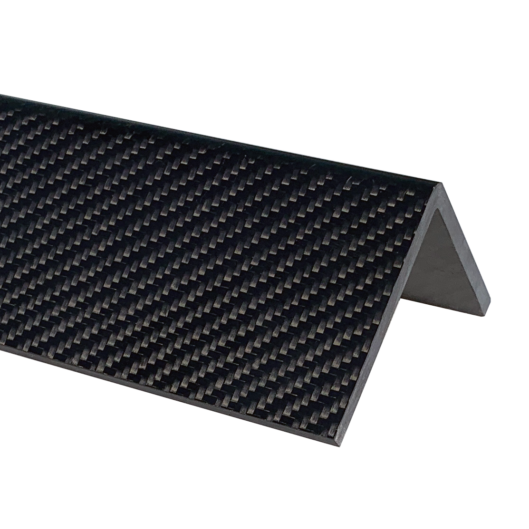

Carbon Fiber Angle – Twill Weave – 1/4″ Thick – 16″ x 3″
$171.65
Description
Elevated Materials angles are press molded using a 0/90 layup schedule, where fibers alternate in the 0 and 90 deg directions. This balance of fiber directions provides a good balance of cost and mechanical properties and is suited for most applications.
All Elevated Materials angles press molded, yeilding an extremely low void fraction and a smooth finish on both sides.
Typical applications for these angles include: Drones, Industrial Robotics, Automotice and Marine Dash Panels, Cosmetic Covers, Scientic Equipment and more.
Contact us if you would like to request a custom layup schedule, cut size, surface finish, material type, or thickness. We are always happy to help.
Additional information
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 16 × 3 × 0.0625 in |
| Leg A Width | 3in |
| Leg B Width | 3in |
| Cosmetic Style | Twill Weave |
| Part Thickness | 1/4" |
| Part Length | 16" |
| Units | Imperial |
| Surface Finish | Matte / Matte |
| Surface Texture | Smooth |
| Tg (Glass Transition Temp) | >= 250F (121C) |
Tolerances
Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.
Standard cuts are made on the tile saw and have a tolerance of +.125 inches and -0.0 inches. Tighter tolerances can be achieved with other cutting operations. Please contact us for requests about custom cuts and tighter tolerances.
