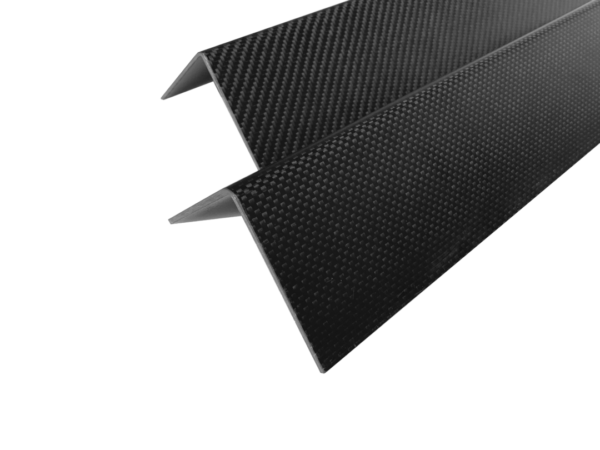

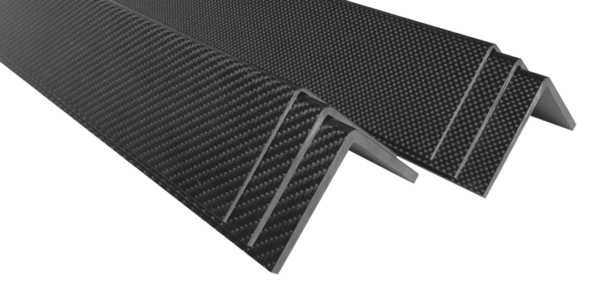

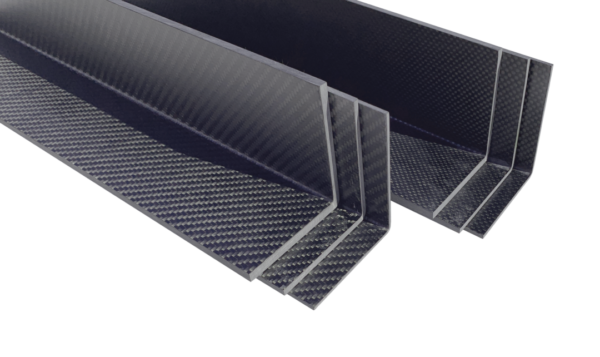

Carbon Fiber Angle – Plain Weave – 1/4″ Thick – 16″ x 3″
Elevated Materials angles are press molded using a 0/90 layup schedule, where fibers alternate in the 0 and 90 deg directions. This balance of fiber directions provides a good balance of cost and mechanical properties and is suited for most applications.
All Elevated Materials angles press molded, yeilding an extremely low void fraction and a smooth finish on both sides.
Typical applications for these angles include: Drones, Industrial Robotics, Automotice and Marine Dash Panels, Cosmetic Covers, Scientic Equipment and more.
Contact us if you would like to request a custom layup schedule, cut size, surface finish, material type, or thickness. We are always happy to help.
|Dimensions||16 × 3 × 0.0625 in|
|Leg A Width||
|Leg B Width||
Matte / Matte
|Tg (Glass Transition Temp)||
>= 250F (121C)
Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.Above are the standard thickness tolerances. Tighter tolerances can be achieved with specific materials or with post-process plaining. Please contact us if your application requires tolerances tighter than our standards.
Standard cuts are made on the tile saw and have a tolerance of +.125 inches and -0.0 inches. Tighter tolerances can be achieved with other cutting operations. Please contact us for requests about custom cuts and tighter tolerances.
